Frequency-Converted Lasers
Frequency doubling and frequency quadrupling
Nonlinear frequency conversion techniques access wavelengths that cannot be generated directly from laser diode technology. Via second or fourth harmonic generation, TOPTICA laser systems can access the UV, blue, green, yellow and orange spectral ranges at high powers. TOPTICA offers tunable, single-frequency systems at any wavelength between 190 nm and 4000 nm, employing ultrastable seed lasers, power amplification in semiconductor or fiber amplifiers, and a proprietary bow-tie cavity design – all in established pro technology.
Integrated:
Easy to use fully integrated systems
Stable:
Superior passive stability
Convenient:
Control everything from a single window from anywhere in the world
Compatible:
Seamless integration into 19” T-RACK

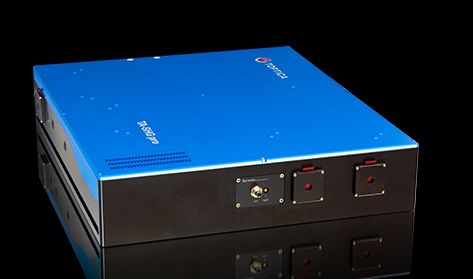

TA-SHG pro
High power, tunable, frequency-doubled diode laser
| 330 – 780 nm |
| Up to 20 W |
| 2 .. 20 nm typical tuning range |
| Harmonic2 |

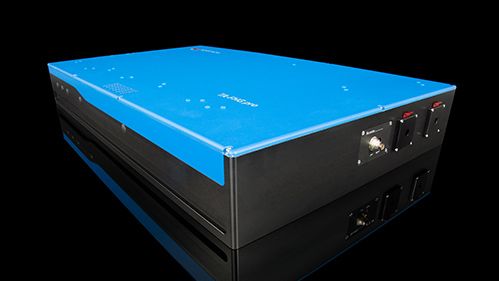

TA-FHG pro
High power, tunable, frequency-quadroupled diode laser
| 205 – 390 nm |
| Up to 3 W |
| 1 .. 10 nm typical tuning range |
| Harmonic2 |

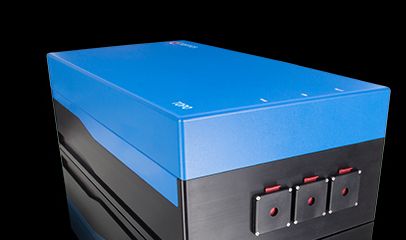

TOPO
Widely Tunable High-Power Continuous-Wave OPO
| 1.45 - 4.0 µm (2500 - 6900 cm-1) |
| Up to 4 W |
| 300 GHz (10 cm-1) |
| mode-hop-free tuning range |
| Stretch |

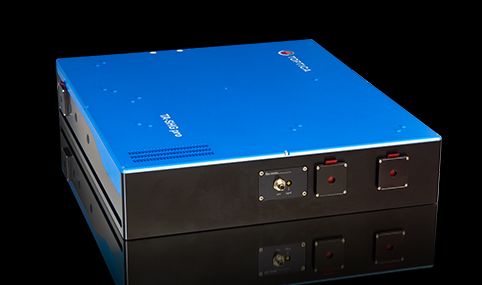

SHG pro
Frequency-doubling unit
| 330 – 780 nm |
| Up to 2000 mW |
| 2 .. 20 nm typical tuning range |
| Harmonic2 |

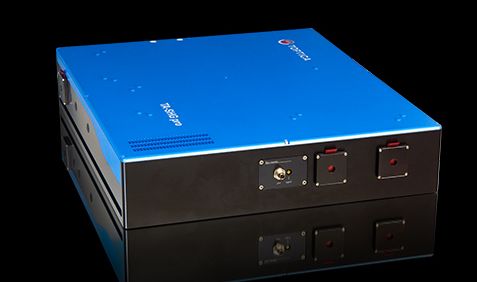

DL-SHG pro
Tunable, frequency-doubled diode laser
| 210 – 680 nm |
| Up to 50 mW |
| 2 .. 15 nm typical tuning range |
