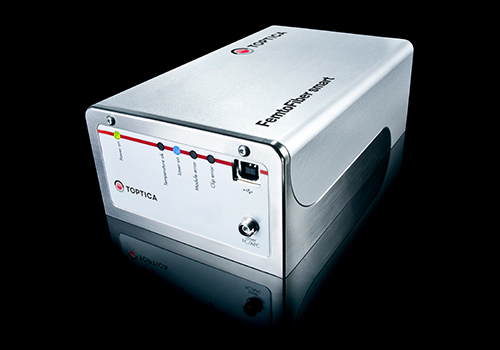

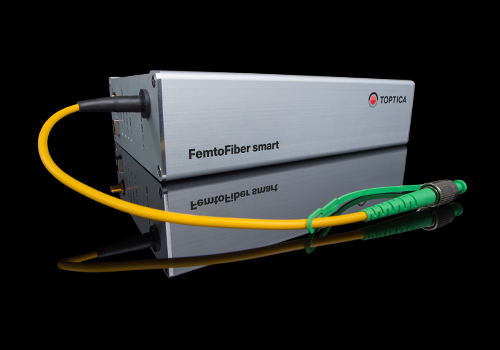

FemtoFiber smart
Compact and efficient fiber seed lasers

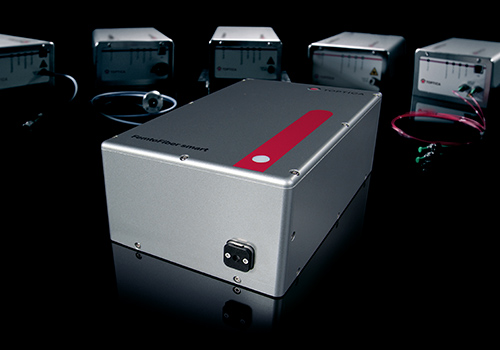

The FemtoFiber smart family is TOPTICA’s new series of ultrafast fiber lasers available as picosecond or femtosecond versions, based either on Ytterbium-doped or Erbium-doped fiber laser architecture. These systems are dedicated to applications ranging from seed laser purposes, biophotonics to terahertz generation and two-photon polymerization. Optimized for a compact footprint uniting optics and electronics in one box, these robust all-fiber lasers are the perfect choice for flexible OEM integration.
- SAM mode-locked all PM fiber setup
- Robust, reliable, compact and turnkey
- Optics and electronics in just one box
- Electrical trigger output
- 12V DC power supply with lowest power consumption
| Wavelength | Pulse duration | Average output power | Repetition rate | |
|---|---|---|---|---|
| FemtoFiber smart 780 | 783 nm ± 5 nm | < 100 fs (typ. 85 fs) | >120 mW (typ. 120 - 140 mW) | 80 ± 1 MHz |
| FemtoFiber smart 780 PT | 780 ± 10 nm | < 80 fs (typ. 70 fs) | > 40 mW (typ. 50 mW) | 100 ± 1 MHz |
| FemtoFYb 1030-400 | 1030.5 ± 1.5 nm | < 2 ps (chirped output) compressible to < 400 fs | > 0.5 mW | 30 ± 0.5 MHz |
| FemtoFYb 1030-800 | 1030.5 ± 1.5 nm | < 800 fs (fourier-limited output) | > 0.5 mW | 20 ± 0.5 MHz |
| PicoFYb 1030 | 1030.5 ± 0.5 nm | typ. 6.5 ± 1 ps | > 20 (typ. 25) mW | 30 ± 0.5 MHz |
| PicoFYb 1064 | 1064.3 ± 0.5 nm | typ. 5.5 ± 1 ps | > 50 mW | 20 ± 0.5 MHz |

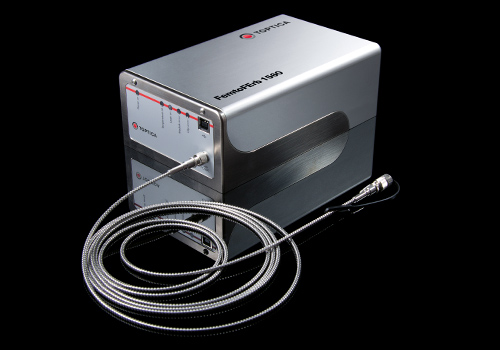

| FemtoFErb 1560 | 1560 ± 10 nm | < 80 fs (typ. 50 fs) | > 120 mW (typ. 140 mW) | 100 MHz (standard, other on request) |
| FemtoFErb 1560 FD6.5 | 1560 ± 10 nm | < 60 fs (typ. 50 fs) | > 80 mW (typ. 90 mW) | 100 MHz (standard, other on request) |
| FemtoFErb 1950 | 1950 ± 10 nm | typ. 100 fs | > 30 mW | 30 MHz |
