Frequency-Converted Lasers
Frequency doubling and frequency quadrupling
Nonlinear frequency conversion techniques access wavelengths that cannot be generated directly from laser diode technology. Via second or fourth harmonic generation, TOPTICA laser systems can access the UV, blue, green, yellow and orange spectral ranges at high powers. TOPTICA offers tunable, single-frequency systems at any wavelength between 205 nm and 4000 nm, employing ultrastable seed lasers, power amplification in semiconductor or fiber amplifiers, and a proprietary bow-tie cavity design – all in established pro technology.
Integrated:
Easy to use fully integrated systems
Stable:
Superior passive stability
Convenient:
Control everything from a single window from anywhere in the world
Compatible:
Seamless integration into 19” T-RACK
TA-SHG pro
High power, tunable, frequency-doubled diode laser
TA-FHG pro
High power, tunable, frequency-quadroupled diode laser

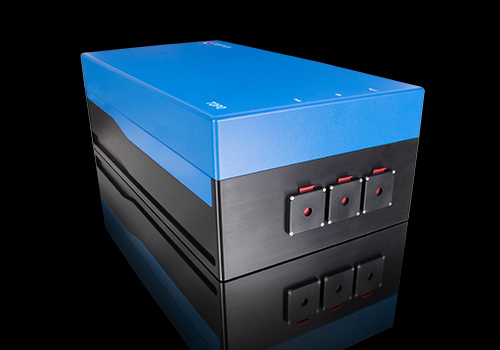

TOPO
Widely Tunable High-Power Continuous-Wave OPO
| 330 – 780 nm |
| Up to 50 W |
| 2 .. 20 nm coarse tuning |
| Harmonic2 |
| 205 – 390 nm |
| Up to 3 W |
| 1 .. 10 nm coarse tuning |
| Harmonic2 |
| 1.45 - 4.0 µm (6900 - 2500 cm-1) |
| Up to 8 W |
| 300 GHz (10 cm-1) MHF tuning range |
| Stretch |
TOPO smart
High performance CW OPO
SHG pro
Frequency-doubling unit
DL-SHG pro
Tunable, frequency-doubled diode laser
| 2.58 - 2.83 µm , 3.1 - 3.5 µm |
| Up to 100 mW |
| < 5 MHz linewidth |
| 330 – 780 nm |
| Up to 2000 mW |
| 2 .. 20 nm coarse tuning |
| 210 – 680 nm |
| Up to 50 mW |
| 2 .. 15 nm coarse tuning |
