SHG pro: Schematic setup

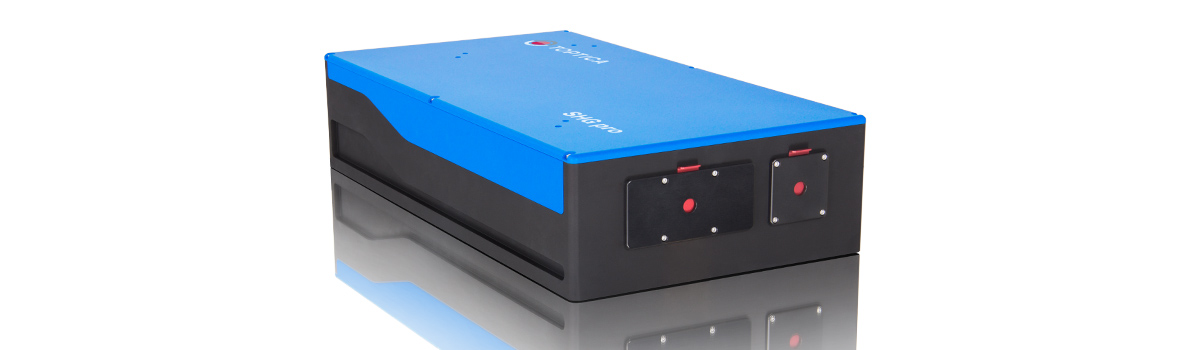

SHG pro
Frequency-doubling unit
- Compact module for resonant frequency doubling
- Best cw conversion rates
- Wavelengths: 205 .. 800 nm, linewidth dependant on seed laser
- Highest stability and Ease of Use: pro technology
- For Ti:Sapphire, dye, gas, fiber and diode lasers
The SHG pro is the device of choice, if existing lasers are to be frequency doubled. Designed in TOPTICA’s pro technology, it unites highly stable performance and convenient operation. Mirror and crystal holders can be adjusted without opening the resonator cover. A wide range of non-linear crystals covers SHG wavelengths from 205 to 800 nm. Together with the customer TOPTICA will find the optimum parameters for frequency doubling. A professional installation by TOPTICA ensures the specified performance is achieved.
-
Specification
Wavelength range* 410 .. 1600 nm → 205 .. 800 nm Optical conversion efficiency** Up to 70% with an ideal fundamental source and higher powers. Beam quality Near-diffraction limited Beam diameter 1...3 mm Coarse tuning 2 .. 20 nm Continuous scan range > 80 GHz @ 400 nm - Additional Information
-
Options
Fiber Delivery
Fiber Delivery (FD) is optionally available with TOPTICA's patented fiber coupler FiberDock and a suitable polarization maintaining (PM) fiber. FiberDock provides highest single-mode fiber coupling efficiencies, easy alignment and at the same time highest stability.
For most lasers, we specify a PER behind fiber of >20 dB with our Fiber Delivery option. Please also inquire about Long Life and High Power fibers as well as fiber splitters. Optical isolation is mandatory for fiber coupled diode laser systems.
EOM
An EOM before the doubling cavity allows to independently create the PDH signal for laser locking. Advantageous for maximum mode-hop-free tuning range.]
Advanced Locking
Various lock options from side-of fringe frequency stabilization to PDH linewidth narrowing available. Modules like DigiLock 110 or PDH/DLC pro can be installed in the DLC ext extension rack, with shortest-possible cable length right next to the laser head. For the most demanding applications you can use the FALC pro (see Laser Locking Electronics).Double Piezo Lock
High-bandwidth stabilization of the SHG pro resonator -
Applications
- Frequency-doubling of existing TOPTICA diode lasers
- Frequency-doubling of 3rd party lasers
(single-frequency lasers, e.g. Ti:Sapphire, Cr:LiSaF, dye lasers, gas lasers, DPSS, diode and fiber lasers) - Rydberg Excitation (Rydberg Flyer for complete laser solutions)
- Optical Clocks
-
Downloads
- Product Brochure: Scientific Lasers (please see website for latest specs!)
- Technical Drawings SHG pro
-
Literature
- Article: Ulrich Eismann Direct and frequency-converted diode lasers provide all wavelengths for holography, Laser Focus World (2018), German version, Chinese version, Japanese version, French version
- Article: R. Kirner et al., Mask-aligner lithography using a continuous-wave diode laser frequency-quadrupled to 193 nm, Optics Express (2018)
- Article: Active and passive stabilization of a high-power UV frequency-doubled diode laser, CLEO, OSA Technical Digest (Optical Society of America, 2016)
- Article: Short, shorter, shortest: Diode lasers in the deep ultraviolet, Laser Focus World, June 2016
- Article: Kurz, kürzer, am kürzesten, Best of (2015)
- Article: More colors! Diode lasers reach Yellow and Orange, Physics' Best (2013)
- Article: Frequenzkonvertierte cw-Lasersysteme für Forschung und Industrie, Physik Journal (2007)
- Application Note: Phase and Frequency Locking of Diode Lasers
- Application Note: Linewidth Measurement of Diode Lasers
-
