iBeam smart WS

Wavelength-Stabilized Diode Laser

  • 468 nm, 633 nm, 638 nm , 660 nm, 685 nm, 785 nm , 808 nm, 828 nm , 852 nm
  • Narrow linewidth (typ. 15 MHz)
  • High wavelength stability
  • Perfect choice for applications like Raman, Diffuse Correlation Spectroscopy (DSC) and Interferometry
  • Fully computer controlled

The iBeam smart WS is the ultimate choice when looking for a compact and narrow linewidth OEM diode laser system. It is the wavelength stabilized version of the iBeam smart featuring reliable wavelength-stabilized diodes. Combined with iBeam smart’s flexible, mircoprocessor based electronics it makes system integration a snap.

Request a quotation Download the product brochure
  • Specification

    468 nm .. 685 nm



    iBeam smart WS 468 633 638 660 685
    Optical Specifications
    Center Wavelength Range (nm) 468 +/- 1 633 ± 1 638 ± 1 660 ± 1 685 ± 1
    Wavelength stability < 15 pm < 15 pm < 15 pm < 15 pm < 15 pm
    Spectral Linedwidth < 25 MHz < 25 MHz < 25 MHz < 25 MHz < 25 MHz
    ASE Suppression (typ.) 25 dB
    Polarization Linear, Orientation tolerance ± 3°, Ratio (typ.) > 50:1
    Optical output power (mW) 40 70 30 120 35 40
    Power Stability (6) ≤ 1 % ≤ 0.5 %
    Beam shape circular ellitptical (1) circular ellitptical (1) circular circular
    Beam size (typ. @1/e2) (mm) 1.0 0.6 x 0.9 (2) 1.4 0.6 x 0.9 (2) 1.6 1.6
    Ellipticity < 10 % 30% (3) < 10 % 30% (3) < 10 % < 10 %
    Divergence (typ.) mrad) < 1.2 < 2 < 1 < 2 < 1 < 1
    M² ≤ 1.5 ≤ 1.7 ≤ 1.5 ≤ 1.7 ≤ 1.5 ≤ 1.5
    M² (typ.) < 1.3 < 1.5 < 1.3 < 1.5 < 1.3 < 1.3
    Pointing stabilty (µrad/K) < 10
    Static alignment (4,5) x,y (mm) xy: +/- 0.2 ± 0.4 ± 0.2 ± 0.4 ± 0.2 ± 0.2
    Static alignment angular (4) (mrad) +/- 0.5 ± 1 ± 0.5 ± 1 ± 0.5 ± 0.5





    785 nm .. 852 nm



    iBeam smart WS 785 808 828 852
    Optical Specifications
    Center Wavelength Range (nm) 785 ± 1 808 ± 1 828 ± 1 852 ± 1
    Wavelength stability < 15 pm < 15 pm < 15 pm < 15 pm
    Spectral Linedwidth < 15 MHz < 25 MHz < 25 MHz < 25 MHz < 15 MHz < 25 MHz
    ASE Suppression (typ.) 25 dB
    Polarization Linear, Orientation tolerance ± 3°, Ratio (typ.) > 50:1
    Optical output power (mW) 120 250 100 350 70 80 250
    Power Stability (6) ≤ 2 %
    Beam shape circular circular ellitptical (1) circular circular circular
    Beam size (typ. @1/e2) (mm) 1.2 0.6 1.0 0.7 x 2.2 (2) 1.0 1.1 0.8
    Ellipticity < 10 % < 10 % < 10 % 30% (3) < 10 % < 10 % < 10 %
    Divergence (typ.) mrad) < 1 < 2 < 1.2 < 2 < 1.2 < 1.2 < 1.6
    M² ≤ 1.5 ≤ 1.7 ≤ 1.5 ≤ 1.7 ≤ 1.5 ≤ 1.5 ≤ 1.5
    M² (typ.) < 1.3 < 1.5 < 1.3 < 1.5 < 1.3 < 1.3 < 1.3
    Pointing stabilty (µrad/K) < 10
    Static alignment (4,5) x,y (mm) ± 0.2 ± 0.2 ± 0.2 ± 0.4 ± 0.2 ± 0.2 ± 0.2
    Static alignment angular (4) (mrad) ± 0.5 ± 0.5 ± 0.5 ± 1 ± 0.5 ± 0.5 ± 0.5

    General and Environmental Specifications:
    Qualification CE marked, Laser Class IIIb qualification, Level 4 ESD protection, RoHS compliant
    PC interface RS 232, ≤ 115.200 baud
    DC Input 12 V DC, 2 A
    Power Consumption < 18 W (typ. < 6 W)
    Heat dissipation < 18 W (baseplate @ 50 °C)
    Warm-up time < 5 min
    Temperature Range 15 – 35 ° C (operation) , -10 – 60 °C (storage)
    Relative Humidity < 90 % (non-condensing)
    Dimensions laser head 40 x 40 x 100 mm3 (H x W x D)
    Weight < 250 g

    All specifications are valid for 100 % optical power.
    (1) Circularization requires additional external beam shaping.
    (2) Beam size at 50 cm behind laser aperture.
    (3) Far field, > 150 cm.
    (4) Static alignment tolerances are relative to reference holes in base plate.
    (5) Central beam aperture, different to drawing of standard iBeam smart.
    (6) drift over 48 h @ room temperature ± 5 °C

  • Additional Information

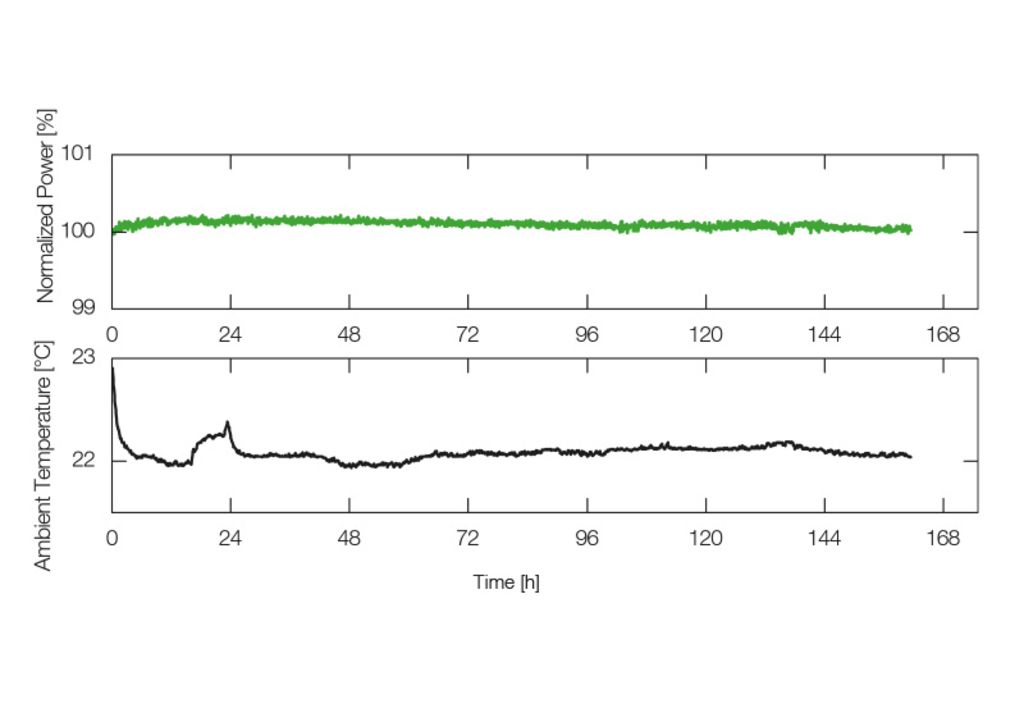

    TOPTICA AG - Excellent power stability Excellent power stability

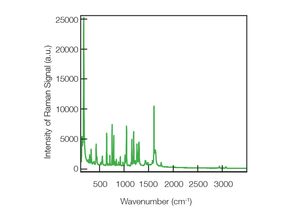

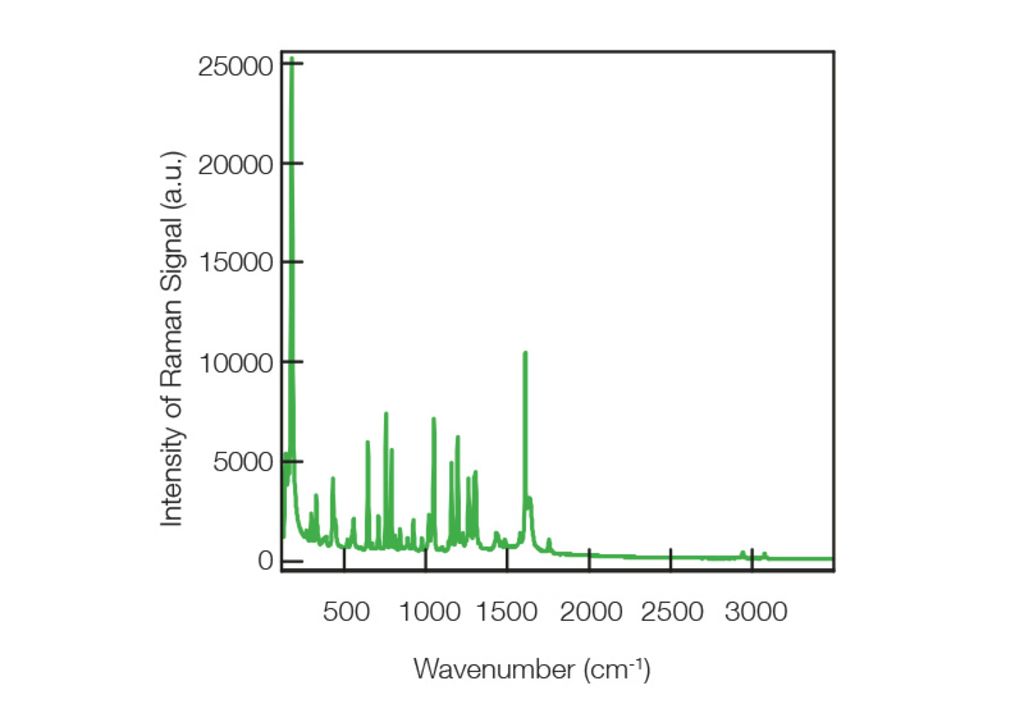

    TOPTICA AG - iBeam smart WS − best suited for Raman applications iBeam smart WS − best suited for Raman applications

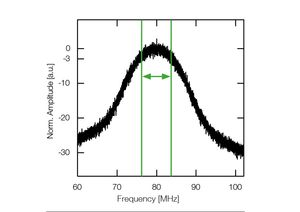

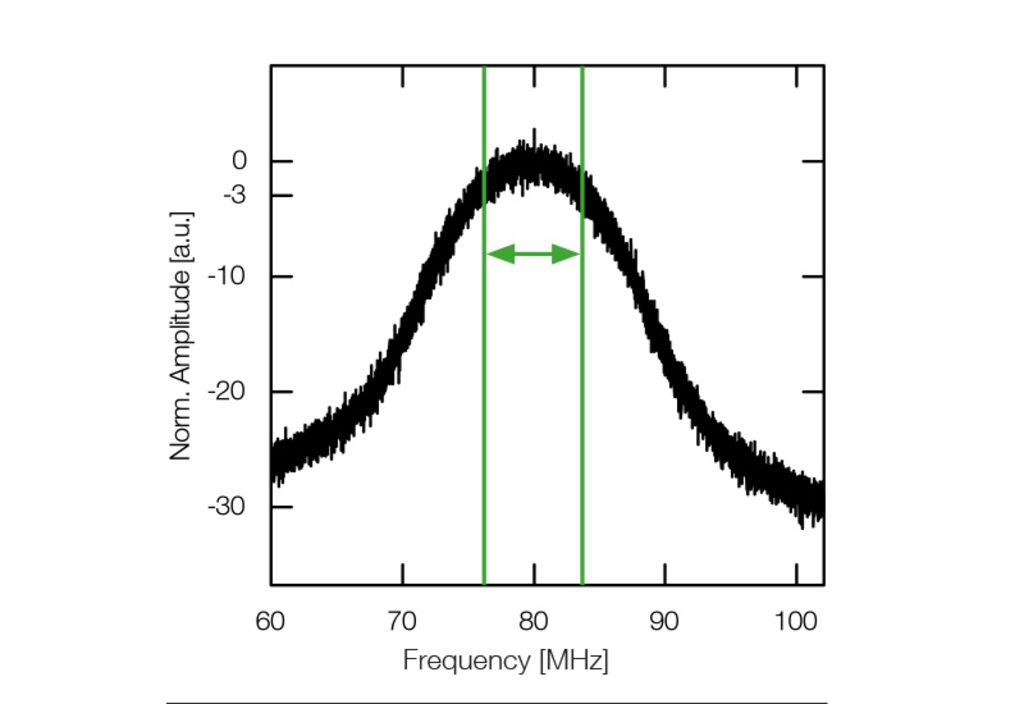

    TOPTICA AG - Typical linewidth < 10 MHz Typical linewidth < 10 MHz

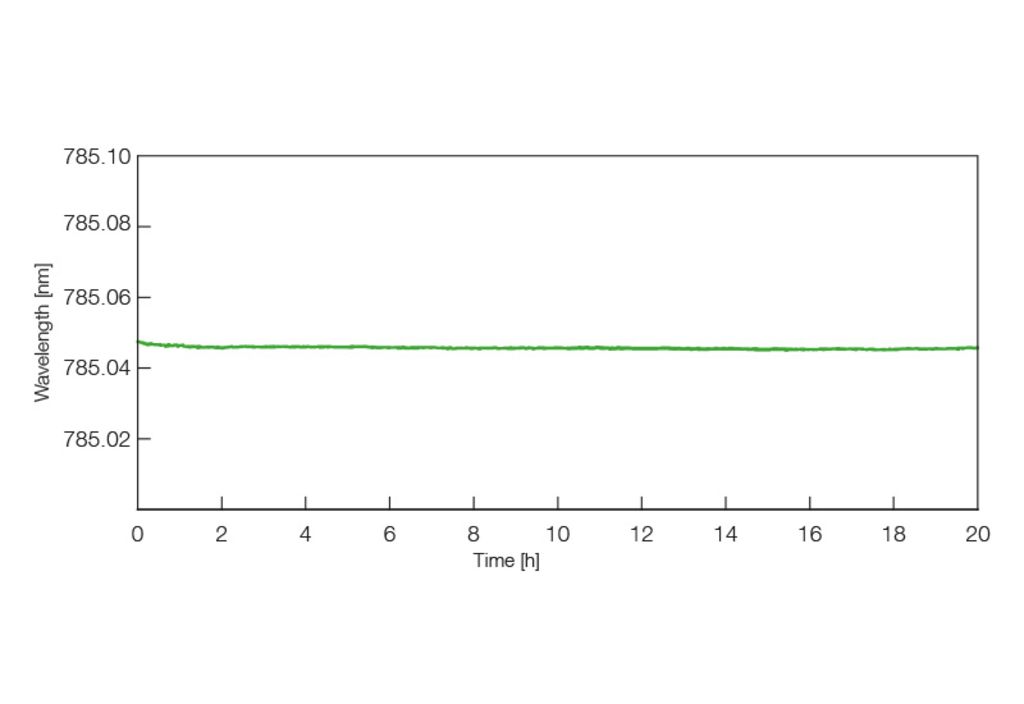

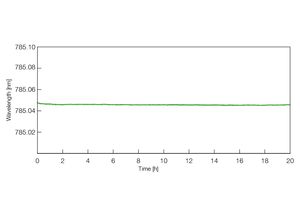

    TOPTICA AG - Ultimate wavelength stability, no mode-hopping Ultimate wavelength stability, no mode-hopping
  • Options

    Fiber coupling - SmartDock
    Especially designed for the iBeam smart TOPTICA's SmartDock turns the iBeam smart into a rugged fiber coupled diode laser system. Both single-mode and polarization-maintaining fibers can be connected to the SmartDock. Better than 60 % coupling efficiency is guaranteed but efficiencies up to 90 % have been demonstrated due to the high beam quality of the iBeam smart.

  • Applications
    • Raman microscopy
    • Raman spectroscopy
    • Diffuse Correlation Spectroscopy (DSC)
    • Linewidth sensitive applications using acousto-optic-deflector
