PicoFYb 1030/1064

Cost-effective industrial quality fiber seed laser

  • Highest lifetime: TOPTICA proprietory SAM modelocking technology
  • Highest long-term stability: Perfect spectral matching to amplifier
  • Ease of use, most compact and reliable: All-PM fiber technology
  • Ideally suited trigger for pulse-picking
  • Fiber laser from the expert: Industrial quality Made in Germany

TOPTICA is proud to introduce the next generation fiber seeder for the industrial micro-machining market! The new systems comprise even smarter features than the previous version. It relies on the same basic principles: saturable absorber mirror (SAM) modelocking technology using an all polarization-maintaining fiber optical setup to establish highest reliability, longterm stability and a perfect match on the amplifier parameters. It is approved for being the ideal source for your multi-Watt level amplifiers in the MOPA (master oscillator, power amplifier) or regenerative amplification system designs operating in the 1 µm wavelength region.

Request a quotation Download the product brochure
  • Specification

    PicoFYb 1030 1064
    Wavelength [nm] 1030.5 ± 0.5 1064.3 ± 0.5
    Pulse duration [sech²] typ. 6.5 ± 1 ps typ. 5.5 ± 1 ps
    Average power [mW] > 20 (typ. 25) > 50
    Output FC/APC fiber pigtail, 30 ± 2 cm long
    Repetition rate [MHz] 30 ± 0.5 20 ± 0.5

    Spectral width [nm] < 0.4 < 0.5
    Polarisation [dB] PER > 20 dB
    Beam Shape TEM00, M² < 1.2
    Trigger Signal (SMA connector) > 150 mV @ 50 Ohm (300 MHz BW), positive
    Time-Bandwidth-Product < 0.5 (typ.)
    RF side mode supression > 50 dBc
    Peak-to-peak noise < 3 %
    Output coupling SM/PM 980 fiber pigtail with narrow key FC/APC connector, length > 20 cm
    Dimensions laser head (HxWxD) 50.2 x 135.1 x 176.5 mm³
    Weight laser head < 2 kg
    Power supply 12 VDC
    Power consumption < 10 Watt
    Interfaces TTL control lines, Switchbox (optional) or remote control (RS-232)
    Environment temperature 15 - 40 °C (operating), 0 - 40 °C (storage and transport)
    Environment humidity Non-condensing
  • Additional Information

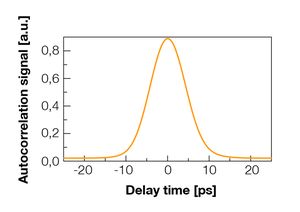

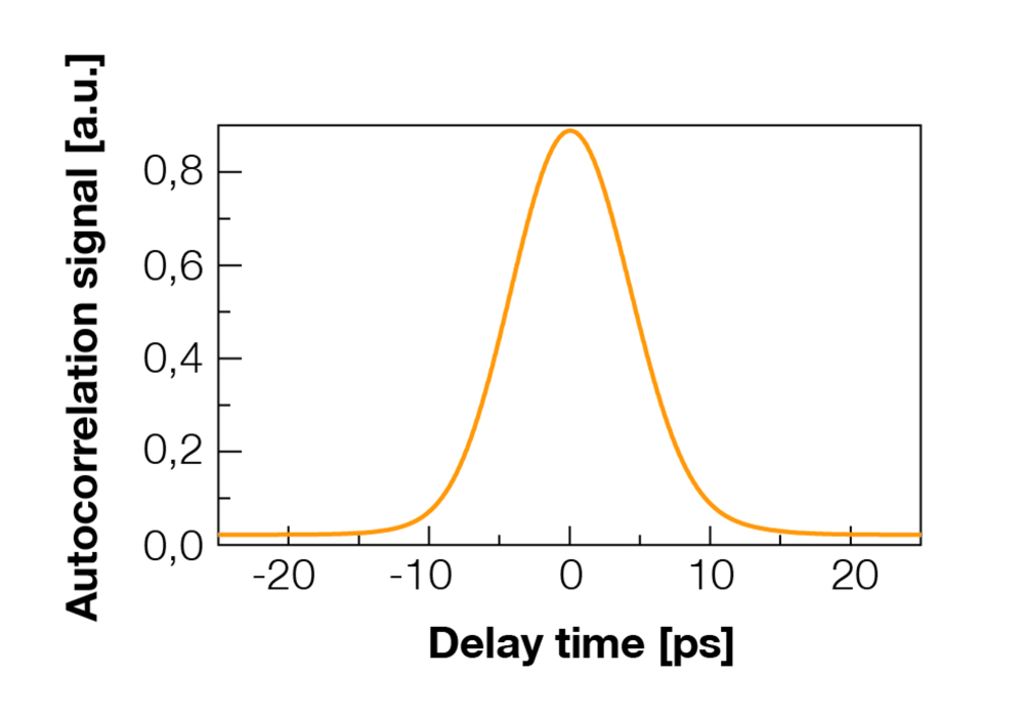

    TOPTICA AG - Intensity Autocorrelation typ. 5.3 ps pulse duration (fourier-limited) Intensity Autocorrelation typ. 5.3 ps pulse duration (fourier-limited)

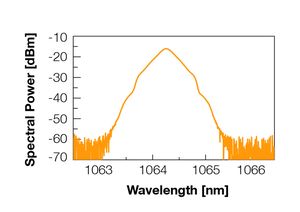

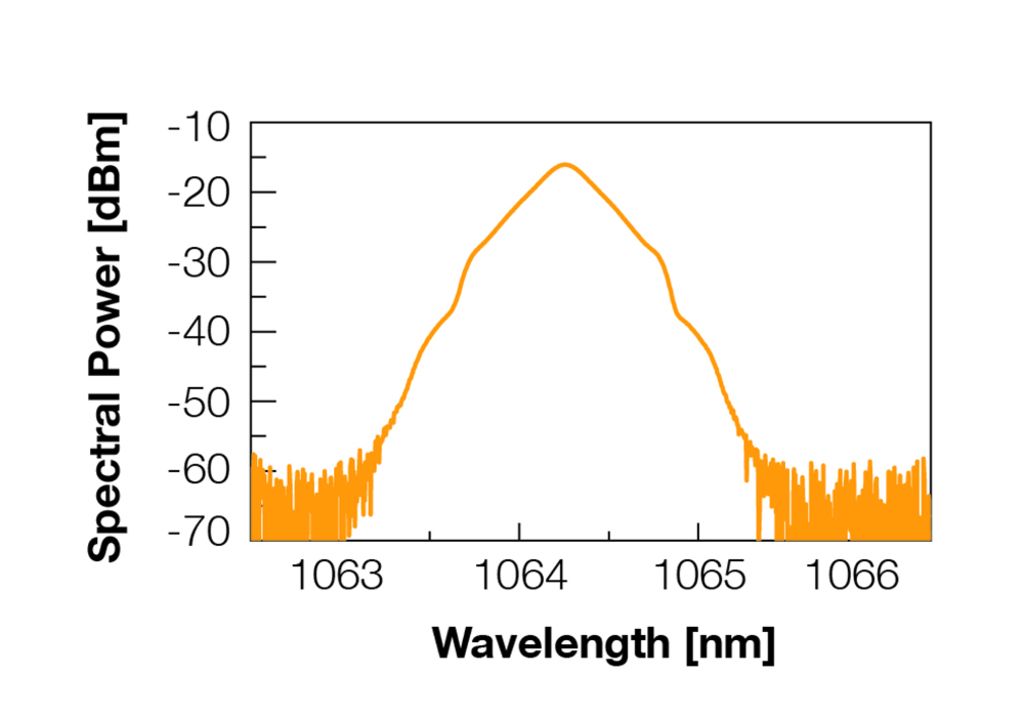

    TOPTICA AG - Emission spectrum typ. 0.46 nm bandwidth (-3 dB) Emission spectrum typ. 0.46 nm bandwidth (-3 dB)

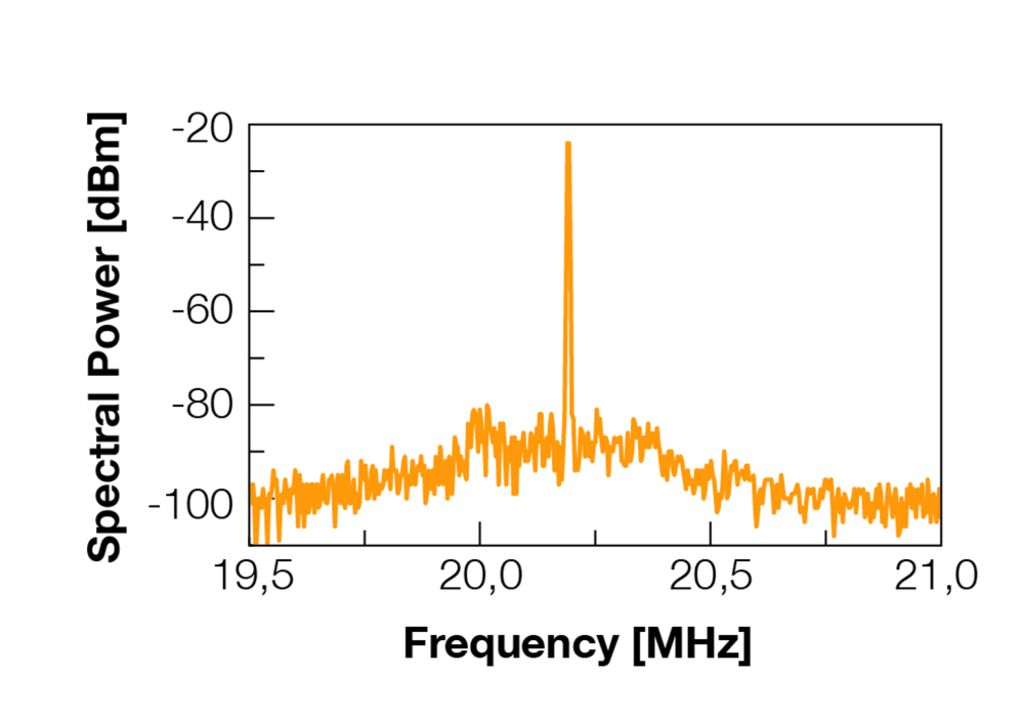

    TOPTICA AG - High RF noise suppression clear signal, < -50 dBc High RF noise suppression clear signal, < -50 dBc
  • Options

    SwitchBox

    The FemtoFiber smart SwitchBox is a small tool for quick starters. It provides all switches, supply and status lines to run every FemtoFiber smart as a stand-alone system without integration environment and therefore is especially recommended for single-system users.

  • Applications
    • PicoFYb 1030: Seeding of Yb:YAG amplifiers
    • PicoFYb 1064: Seeding of Nd: YVO4 amplifiers
