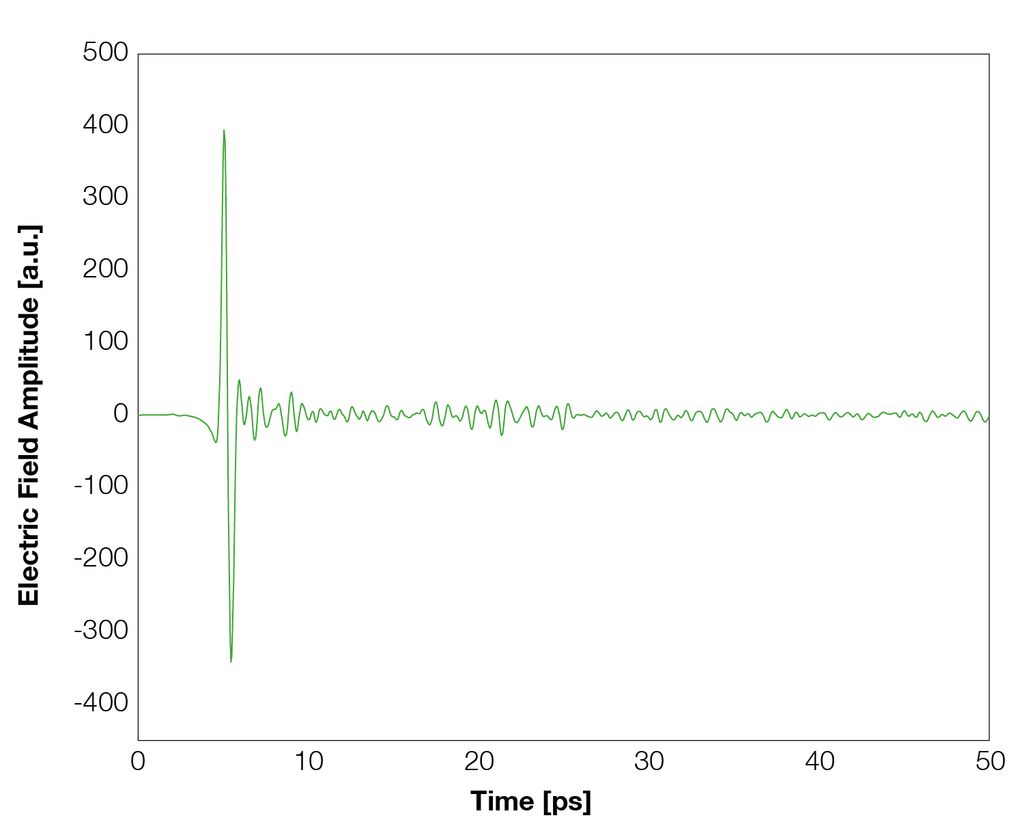

Terahertz pulse measured by THz-TDS (time-domain spectroscopy) using the TeraFlash pro.
FemtoFiber TeraFlash TRTS
Laser system for time-resolved terahertz time-domain spectroscopy (TRTS)

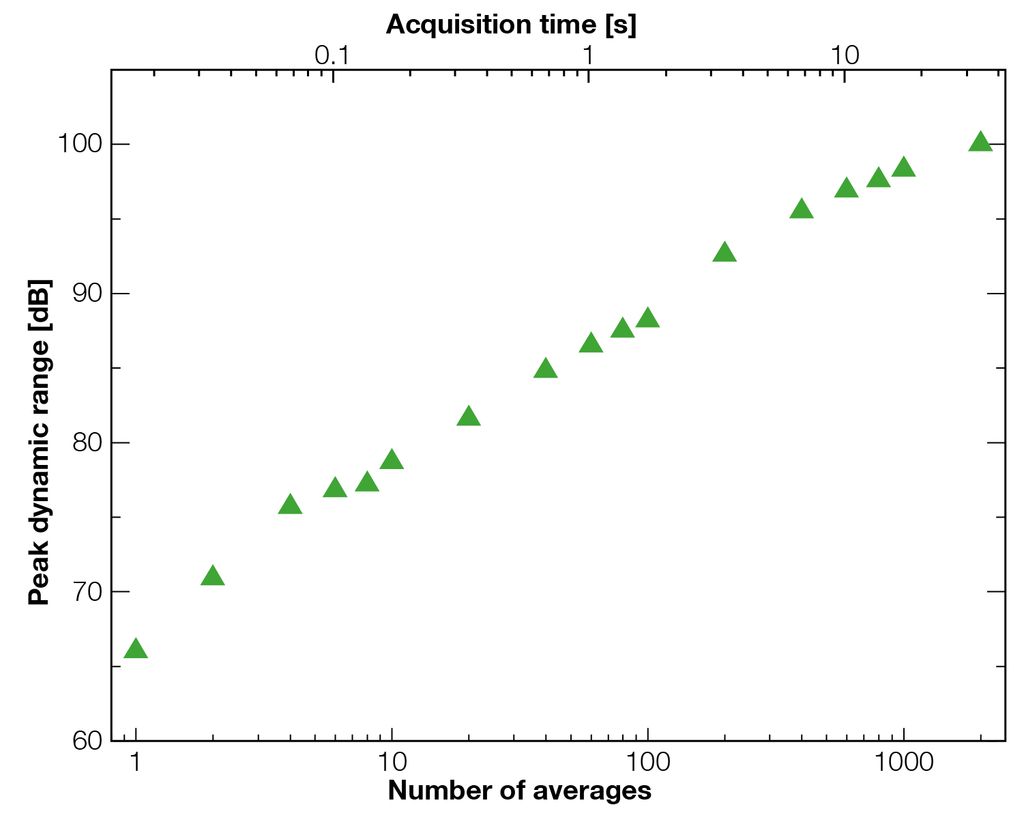

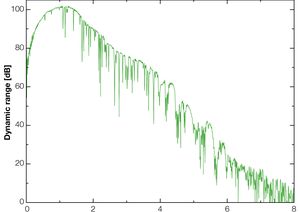

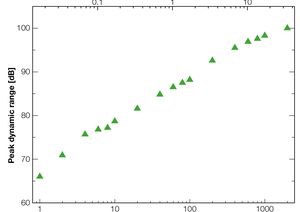

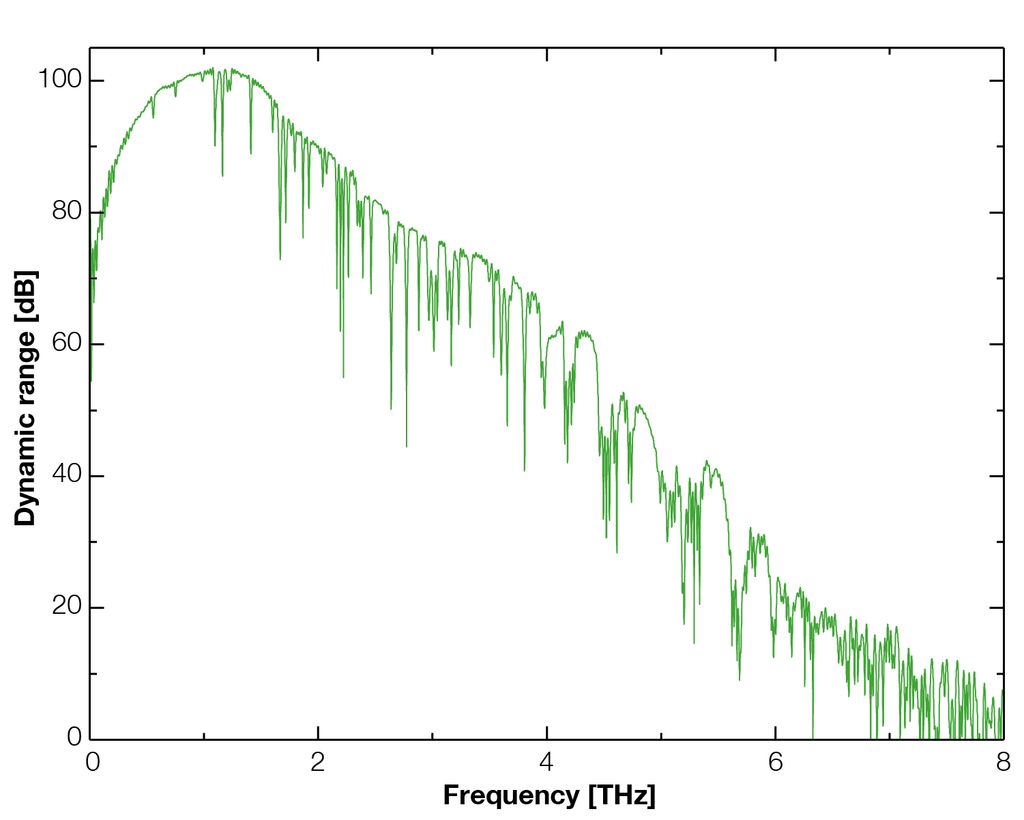

- 100 dB dynamic range & more than 6 THz bandwidth
- Dual option – simultaneous operation of 2 antenna pairs
- Optical synchronization to femtosecond pump lasers for TRTS
- Integrated pump-probe delay up to 500 ps
- Simple, turn-key, and compact solution
The FemtoFiber TeraFlash TRTS laser system is a true work horse for time-resolved THz spectroscopy (TRTS). The laser is based on our well established TeraFlash pro platform and extends its capabilities towards optical-pump THz-probe spectroscopy. Optical synchronization between the pump and probe laser is achieved via a common oscillator resulting in a highly stable and robust measurement solution. Integrated pump-probe delay options, all fiber design, and full software control make this laser simple, turn-key, and compact - TRTS has never been easier!
-
Specification
Laser Output TeraFlash pro Pumplaser Option #1
FemtoFiber ultra 1550Pumplaser Option #2
FemtoFiber ultra 780 / 390Pumplaser Option#3
FemtoFiber ultra 1050 / 525Spectral range / Wavelength 0.1 – 6 THz 1550 nm 780 nm / 390 nm (switchable) 1050 nm / 525 nm (switchable) Power typ. 30 µW > 2 W > 500 mW / >100 mW > 4 W / > 1 W Pulse duration not defined < 200 fs < 150 fs / < 200 fs < 120 fs / < 200 fs Repetition rate 80 MHz, optically synchronized via common laser oscillator Amplitude modulation (optional) Pulse-picking down to 40, 20, 10 MHz (others upon request) Relative timing control (optional) Integrated delay line to adjust the relative timing between optical pump and THz probe pulses,
500 ps total scan rangeOutput coupling Free space Cooling Air-cooled - Additional Information
-
Applications
- THz time-domain spectroscopy (THz-TDS)
- Time-resolved THz spectroscopy (TRTS)
